Description
Here is the detailed description of the Servotec 7.2 kW EV Charger, based on the official catalog you provided:

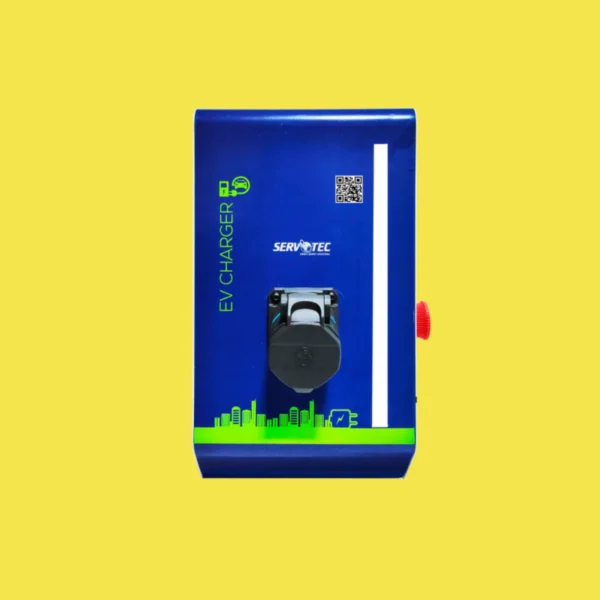

Detailed Description – Servotec 7.2 kW AC EV Charger (Model: SERVOCHARGE 7.2 KW)
Single Phase | Type 2 Connector | Smart Charging Enabled
The Servotec 7.2 kW EV Charger, model SERVOCHARGE 7.2 kW, is a robust and efficient AC wall-mounted EV charger designed for home, commercial, and institutional use. Engineered for single-phase electric vehicles, it supports all standard Type 2 charging interfaces and delivers a powerful 7.2 kW output, ensuring safe, fast, and reliable charging for modern electric cars and two-wheelers.
Manufactured by Servotech Power Systems Ltd., a leading name in India’s green energy ecosystem, this charger combines cutting-edge technology, intelligent safety features, and user-friendly design—making it a top choice for EV owners, fleet operators, residential societies, and commercial establishments.
⚡ Key Features & Benefits
✅ 1. High Power Output – 7.2 kW
- Provides fast and efficient charging for single-phase electric vehicles
- Ideal for home, residential societies, corporate parking, and small commercial stations
- Compatible with EVs from Tata, MG, Hyundai, Mahindra, BYD, and more
✅ 2. Universal Type 2 Connector
- Comes with Type 2 standard charging gun (as per IEC 62196-2)
- Compatible with all major EV brands and vehicles sold in India
- Ergonomic design and easy plug-in mechanism
✅ 3. Smart Charging with OCPP Integration
- OCPP 1.6 JSON compliant for centralized monitoring and backend integration
- Enables remote monitoring, billing, load management, and energy tracking via charging management platforms
- Ideal for smart grid environments, societies, and charging networks
✅ 4. Built-in Safety & Protection Features
- Over-voltage, over-current, under-voltage, surge, short-circuit, and earth fault protection
- Fire-resistant enclosure (IP55 rated)
- Auto-restart feature in case of power failure
- Safe for both indoor and outdoor installations
✅ 5. User-Friendly Interface
- Equipped with LED status indicators for power, charging, and fault status
- Easy-to-install wall-mount design with compact housing
- Optional mobile app or RFID for user access and control (depending on configuration)
✅ 6. Rugged and Weather-Proof Design
- Sturdy, IP55-rated housing protects against dust, rain, and external damage
- Designed for long life in Indian weather conditions
- Operating temperature: -20°C to +55°C
⚙️ Technical Specifications
| Parameter | Details |
|---|---|
| Model | SERVOCHARGE 7.2 kW |
| Output Power | 7.2 kW |
| Output Voltage | 230V AC, Single Phase |
| Output Current | Up to 32A |
| Connector Type | Type 2 (IEC 62196-2) |
| Input Supply | 230V ±10%, 50 Hz |
| Cable Length | 5 meters (standard) |
| Mounting | Wall-Mount |
| Communication | OCPP 1.6 JSON, RS-485, Ethernet/Wi-Fi |
| Protection | Over-voltage, over-current, surge, short circuit, ground fault |
| Enclosure Rating | IP55 (Outdoor/Indoor Use) |
| Operating Temperature | -20°C to +55°C |
| Standards Compliance | IEC 61851, IS17017 |
| Dimensions | Compact & slim wall-mount design |
| Warranty | 1 Year manufacturer warranty |
🏡 Ideal Applications
- Residential homes and villas
- Apartment complexes and gated societies
- Corporate and office campuses
- Shopping malls and commercial buildings
- Hotels, hospitals, and institutional campuses
- EV fleet operators and parking lot owners
🔌 Smart Features (Optional with Networked Version)
- RFID-enabled access
- Real-time app-based monitoring
- Dynamic load balancing (with OCPP backend)
- Energy metering and user reports
- Compatible with solar-integrated EV stations
🌱 Why Choose Servotec 7.2 kW EV Charger?
- Make in India product with international standards
- Backed by Servotech’s expertise in clean tech and solar power
- Future-ready design for grid and rooftop solar compatibility
- Compact, stylish, and rugged build for Indian conditions
- Excellent after-sales support and integration assistance
The Servotec 7.2 kW EV Charger is an ideal solution for fast, safe, and smart EV charging at home or in commercial spaces. Whether you’re an EV owner, builder, or fleet operator, this charger delivers top-tier performance with complete safety and ease of use.
📞 Contact Solar Uncle today to install your Servotec EV charger and power up the future of clean mobility.
Charge Smart. Drive Clean. With Servotech.
